Hand Fed Tilting Drum Mixers

Hand Fed Tilting Drum Mixers
  • Hand-fed concrete mixers from 100 litres to 200 litres mixed batch output
  • All models capable of mixing at a rate of 12 batches per hour giving production output rates ranging from 1.2 to 2.4 cubic metres per hour
  • Robustly engineered with fully enclosed drivelines, WINGET mixers provide safe, reliable performance and long service life
  • Positive, heavy duty driveline utilising bevel wheel and pinion.
  • Highly efficient, two piece heavy gauge, spun steel drum
  • Multi-position lockable drum
  • Fast Tow trailer models available with adjustable towbar, pneumatic tyres, mudguards and independent suspension
  • Available with Yanmar electric start diesel engine
  • WINGET is an ISO 9001 certified company
  • Second to none after sales spares service through WINGET’S Worldwide Distributor Network.

View our range below, or contact us if you need some advice.

  • Chassis: Heavy gauge, box section gives clean lines and less material traps. Fitted with lifting points.
  • Drum: Two piece, spun steel drum assures long life and easy replacement. Highly efficient drum design and twin fast-acting blades ensure thorough mixing and eliminate clogging and wasteful ‘build-up’.
  • Engine: Powered by Yanmar L48 electric start diesel engine.
  • Driveline: Totally enclosed, heavy duty driveline through roller chain, bevel wheel and cast steel pinion, (electric start mixers use ‘V’ belt drive).
  • Access: Good all round access to daily check points, service items and all replaceable components.
  • Operation: Careful design ensures maximum working space around the machine for charging, mixing and discharging.
  • Axles/Wheels: Fixed rear axle and swiveling front axle fitted with four rubber cushion tyres and towbar. Fast tow models fitted with two pneumatic wheels, mudguards and towbar.

Brochures

Products

  • WINGET 100T

    CAPACITIES:
    Mixed Batch Output 100 Litres
    Unmixed Capacity 150 Litres
    Gross Drum Volume 263 Litres
    Drum Speed 22 rev/min
    Production Rate 1.2m3/hr
  • WINGET 100TFT HAND FED MIXER

    WINGET 100TFT

    CAPACITIES:
    Mixed Batch Output 100 Litres
    Unmixed Capacity 150 Litres
    Gross Drum Volume 263 Litres
    Drum Speed 22 rev/min
    Production Rate 1.2m3/hr
  • WINGET 150T HAND FED MIXER

    WINGET 150T

    CAPACITIES:
    Mixed Batch Output 150 Litres
    Unmixed Capacity 200 Litres
    Gross Drum Volume 362 Litres
    Drum Speed 22 rev/min
    Production Rate 1.8m3/hr
  • WINGET 150TFT HAND FED MIXER

    WINGET 150TFT

    CAPACITIES:
    Mixed Batch Output 150 Litres
    Unmixed Capacity 200 Litres
    Gross Drum Volume 362 Litres
    Drum Speed 22 rev/min
    Production Rate 1.8m3/hr

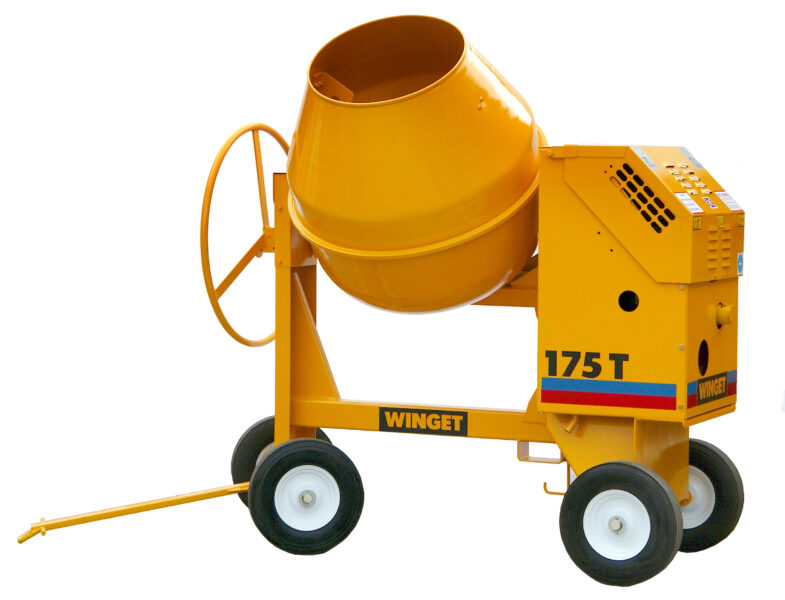

  • WINGET 175T HAND FED MIXER

    WINGET 175T

    CAPACITIES:
    Mixed Batch Output 175 Litres
    Unmixed Capacity 240 Litres
    Gross Drum Volume 377 Litres
    Drum Speed 22 rev/min
    Production Rate 2.1m3/hr
  • WINGET 175TFT HAND FED MIXER

    WINGET 175TFT

    CAPACITIES:
    Mixed Batch Output 175 Litres
    Unmixed Capacity 240 Litres
    Gross Drum Volume 377 Litres
    Drum Speed 22 rev/min
    Production Rate 2.1m3/hr
  • WINGET 200T HAND FED MIXER

    WINGET 200T

    CAPACITIES:
    Mixed Batch Output 200 Litres
    Unmixed Capacity 285 Litres
    Gross Drum Volume 485 Litres
    Drum Speed 22 rev/min
    Production Rate 2.4m3/hr
