4B Range (4 wheel drive site dumpers)

4B Range (4 wheel drive site dumpers)
  • Tough and versatile, WINGET 4B Series dumpers offer reliability and simplicity for a long, productive life
  • High strength, articulated steel chassis
  • Lister Petter air cooled diesel engines available with hand or electric start
  • Hydraulically operated skip with twin rams on standard skip and single ram on high discharge skip model
  • High discharge skip model available (4B2000 HD)
  • Oil immersed multi-plate disc brakes
  • WINGET is an IS0 9001 certified company
  • Second to none after sales spares service through WINGET’S Worldwide Distributor Network.
  • Skip: Heavy duty 5mm steel plate with skip edges and underside reinforced by welded steel section for maximum durability.
  • Standard Skip: – hydraulically operated by twin double acting rams.
  • High discharge Skip:– hydraulically operated by single heavy duty double acting ram.
  • Engine:Lister Petter TR2 Diesel 19kW (25.4hp) @ 2500rpm. Hand start. (Electric start available as an option).
  • Chassis: Robust, high strength front and rear chassis. Central articulation pivot, with low maintenance spherical bearings. High articulation angle for tight turning performance.
  • Transmission: Gearbox and Clutch: Heavy duty consistant mesh gearbox, with 3 forward and 1 reverse gears, driving driving through a single dry-plate clutch. Clutch diameter: 210mm (8.25″)
  • Transfer box: Chain drive transfer box coupled by heavy-duty propeller shafts to the front and rear axles.
  • Axles & Brakes:– front axle heavy duty double reduction with fully floating half shafts. Totally enclosed oil immersed multi-plate disc brakes. Rear axle heavy-duty double reduction with fully floating half-shafts. Frame mounted with centre pivot oscillation.
  • Steering and hydraulics: Full power hydrostatic steering operating through central articulation pivot. Direct drive gear pump, with high capacity return line filtration. Hydraulic tank has lockable filler cap.
  • Driving position and controls: Central high-mounted driving position for good all-round visibility. Fully cushioned seat with rubber suspension spring, accessible from both sides. Foot and hand controls carefully positioned for maximum operator comfort and easy operation. 1 reverse and 3 forward gears, driving through a single dry-plate clutch.
  • Options: – electric start, braked rear axle, lighting kit.

Brochures

Products

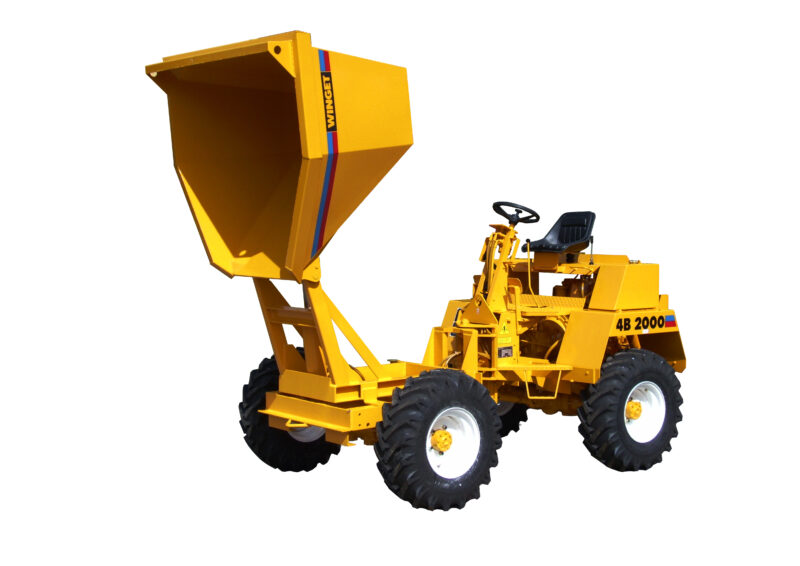

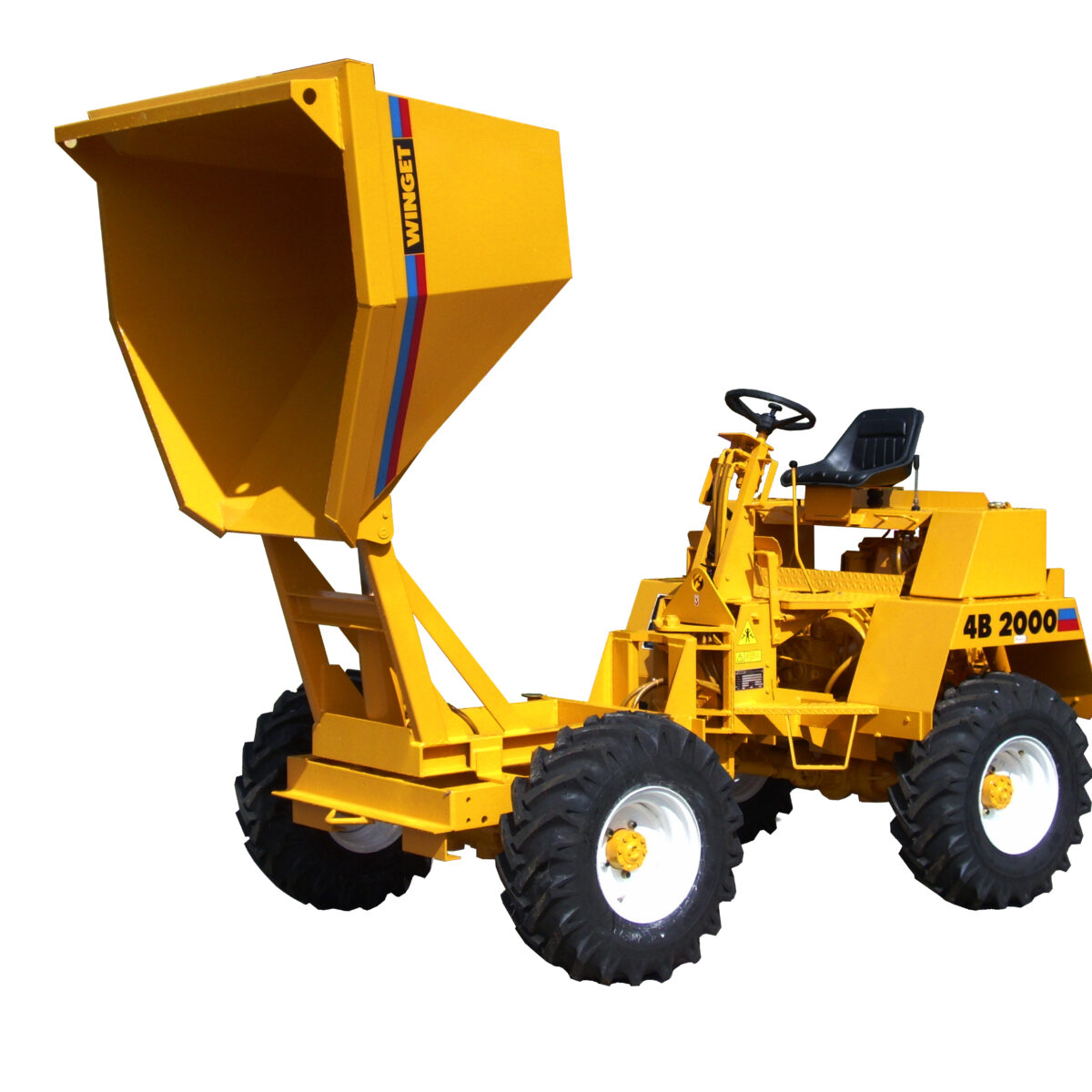

  • WINGET 4B2000 HIGH DISCHARGE TIPPING

    WINGET 4B2000 HD (HIGH DISCHARGE SKIP)

    CAPACITIES:
    Payload 2000kg
    Water Level 850 litres
    Struck 1000 litres
    Heaped 1207 litres
    Fuel Tank 29.5 litres
    Hydraulic Tank 29.5 litres
  • WINGET 4B2000 HT LOW DISCHARGE SKIP

    WINGET 4B2000 HT (LOW DISCHARGE SKIP)

    CAPACITIES:
    Payload 2000kg
    Water Level 850 litres
    Struck 1100 litres
    Heaped 1500 litres
    Fuel Tank 29.5 litres
    Hydraulic Tank 29.5 litres
