MECHANICALLY FED MIXERS - HOPPER FED, REVERSING DRUM

MECHANICALLY FED MIXERS - HOPPER FED, REVERSING DRUM
  • Heavy duty, reversing drum, mechanically fed concrete mixer manufactured to the highest specification
  • High capacity mixers capable of producing up to 24 batches per hour. 300R-7.2 cubic metres, 400R-9.6 cubic metres per hour, 500R 12 cubic metres per hour
  • Standard machine includes water tank with automatic filling and measured volume discharge, or flowmeter.
  • Hydraulically operated feed hopper Choice of hand/electric start, Lister Petter air cooled diesel engine or 3-phase electric motor
  • Towable chassis with four pneumatic tyred wheels.
  • Jacking system allows wheel removal for storage during long term use
  • WINGET mixers for sale in the EC are CE marked
  • WINGET is an ISO 9001 certified company
  • Second to none after sales spares service through WINGET’S Worldwide Distributor Network.

View our range below, or contact us if you need some advice.

Standard Equipment

  • Chassis: Heavy duty steel section towable chassis with swiveling front axle and four pneumatic tyred wheels for excellent site mobility. Four jack legs give maximum stability throughout the mixing cycle.
  • Drum: Heavy gauge spun and rolled drum with proven paddle design lead to thorough, efficient mixing and long life. Fitted with heavy duty drum rollers and sealed shaft bearings for reliability.
  • Driveline: A smooth, reversible drum action, controlled by a single lever, is provided by the heavy duty drive gearbox with oil immersed clutches.
  • Water Tank: Automatic filling and manually controlled, measured volume discharge. Amount of water discharged is pre-set by a pointer over a graduated scale on the reservoir. Also available with flowmeter in lieu of water tank.
  • Feed Hopper: Hydraulically operated loading hopper with high discharge angle ensures rapid and clean feed of materials into drum.
  • Engine: Lister Petter hand/electric start air cooled diesel engine or 3-phase electric motor.

Optional Equipment

  • Batchweigher: The Winget Batchweigher is designed around a mechanical parallel link which ensures that when the feed hopper is lowered into the loading position, it rests precisely against a hydraulic load-cell located on the mixer chassis. This system provides constantly accurate weight control of the materials fed into the hopper regardless of load distribution. A large weigh dial clearly calibrated in 5kg (11Ib) increments gives the operator an accurate and progressive readout. Weighing is further assisted by a reset facility and three adjustable markers which can be preset for each type of aggregate.
  • Dragline Feeder: The Dragline Aggregate Feeder maximizes output from Winget hopper-fed mixers by enabling one man to keep the mixer continuously charged with materials. A powered feed shovel, under direct operator control through a switch on the shovel handle, is drawn towards the mixer on a wire rope operated by a hydraulic winch. The filled shovel is then discharged easily into the feed hopper.
  • Feed Apron: A converging steel ramp provides a direct path for the dragline feed shovel up to the feed hopper, greatly simplifying hopper charging. Dividing partitions keep coarse and fine aggregates separated. The feed apron also prevents aggregate from building up underneath the feed hopper, ensuring batchweigher accuracy by eliminating discrepancies which may otherwise result from material ‘build-up’.
  • Discharge Cones: Discharge Extension cones give greater discharge clearance; available in steel and rubber. They enable accurate discharge into placing vehicle without spillage.

Brochures

Products

  • WINGET 400R MIXER WITH ATTACHMENT

    WINGET 300R DIESEL

    CAPACITIES:
    Mixed Batch Output 300 Litres
    Unmixed Capacity 400 Litres
    Gross Drum Volume 1600 Litres
    Drum Speed 14 rev/min
    Production Rate 7.2m3/hr
    Dragline Shovel Capacity 140 Litres
  • WINGET 400R MIXER WITH ATTACHMENT

    WINGET 300R ELECTRIC

    CAPACITIES:
    Mixed Batch Output 300 Litres
    Unmixed Capacity 400 Litres
    Gross Drum Volume 1600 Litres
    Drum Speed 14 rev/min
    Production Rate 7.2m3/hr
    Dragline Shovel Capacity 140 Litres
  • WINGET 400R MIXER WITH ATTACHMENT

    WINGET 400R DIESEL

    CAPACITIES:
    Mixed Batch Output 400 Litres
    Unmixed Capacity 600 Litres
    Gross Drum Volume 2100 Litres
    Drum Speed 14 rev/min
    Production Rate 9.6m3/hr
    Dragline Shovel Capacity 140 Litres
  • WINGET 400R MIXER WITH ATTACHMENT

    WINGET 400R ELECTRIC

    CAPACITIES:
    Mixed Batch Output 400 Litres
    Unmixed Capacity 600 Litres
    Gross Drum Volume 2100 Litres
    Drum Speed 14 rev/min
    Production Rate 9.6m3/hr
    Dragline Shovel Capacity 140 Litres

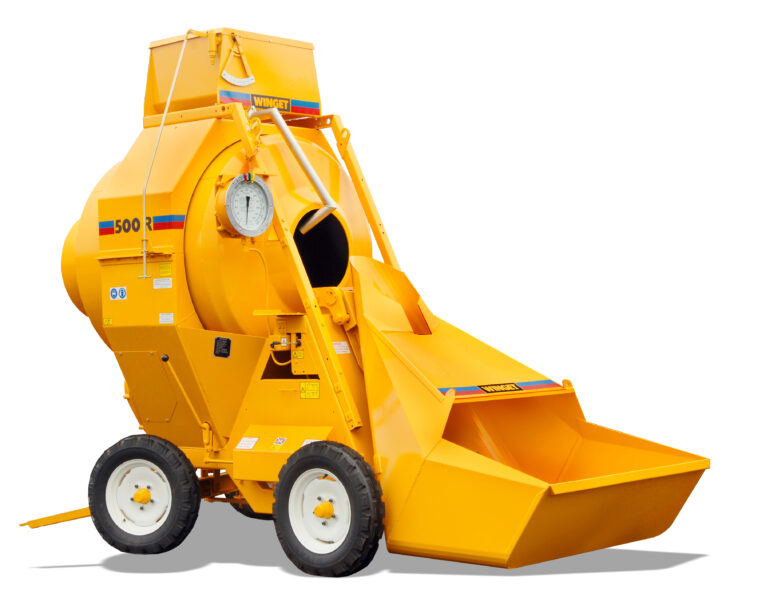

  • WINGET 500R DIESEL

    WINGET 500R DIESEL

    CAPACITIES:
    Mixed Batch Output 500 Litres
    Unmixed Capacity 750 Litres
    Gross Drum Volume 3200 Litres
    Drum Speed 14 rev/min
    Production Rate 12m3/hr
    Dragline Shovel Capacity 140 Litres
  • WINGET 500R ELECTRIC

    WINGET 500R ELECTRIC

    CAPACITIES:
    Mixed Batch Output 500 Litres
    Unmixed Capacity 750 Litres
    Gross Drum Volume 3200 Litres
    Drum Speed 14 rev/min
    Production Rate 12m3/hr
    Dragline Shovel Capacity 140 Litres
